Allied ECHO

Allied ECHO
  • Color: Matte Black
  • Color: Wineberry
  • Color: Matte Slate
  • Color: Matte Quicksand
  • Color: Matte Quicksand
  • Color: Matte Quicksand
  • Color: Matte Quicksand
  • Color: Midnight Blue Metallic
  • Color: Miami Vice Green
  • Color: Maroon Metallic
  • Color: Gulf
  • Color: Ecru
  • Color: Dove Grey
  • Color: Cavalry Blue
  • Color: British Racing Green
  • Color: Harlequin - Purple to Green
  • Color: Harlequin - Blue to Red
  • Color: Harlequin - Magenta to Gold
$6,510.00 - $11,650.00
Please select options

Details

At the heart of the ECHO’s genetic code is pure unadulterated speed - the ability to transform from a road race thoroughbred to a versatile, agile gravel bike with a simple switch of flip chips at the front and rear dropouts. These eccentric chips, and corresponding dropout design allow the rider to easily change the bike geometry, effectively changing the chainstay length and fork length by 1 cm. The difference transforms the bike from a road machine with 415mm chainstay length, 368mm fork length, 73-degree headtube angle, and tire clearance for up to a 30mm, to a gravel bike with 425mm chainstay length, 378mm fork length, 72.5mm head tube angle, and 40mm tire clearance - all within a 10-minute switch of dropout chips. Pure road performance one day, gravel race-ready the next. One bike. No compromise.

The ECHO Stem is a fully integrated system designed in tandem with our fork to completely conceal the cables while still using a standard headset, allowing the rider to easily swap stem lengths, and it works with a growing list of handlebars designed with integrated cables in mind. The system is the simplest and most user-friendly on the market. The cables run through a channel on the top of the stem and are concealed by a faceplate, top cap, and the steerer tube. Headset adjustment is moved from the traditional position at the top of the stem to a threaded portion on the bottom of the stem that effectively increases the steerer clamp length to provide headset preload, much like a threaded headset. The Echo stem comes in 6 sizes from 80-130mm in 10mm increments and is a -6 degree. Like everything we do, the stem is MADE HERE in our Bentonville factory. A 100mm stem weighs 184g.

The ECHO isn’t an everyday racing beast. It’s actually two everyday racing beasts, each with a distinct personality. The SRAM Rival AXS brings precision, gear range, and simplicity of AXS to a much more affordable price point than what was possible before with Force. Our standard configuration comes paired with Industry Nine’s sturdy and wide 1/1 GRCX wheels and the all-new WTB Vulpine ultra fast-rolling tubeless gravel tire in 700x40, but you can select the exact wheel and tire combo to build your beast as you please.

GEOMETRY
Flip Chips change geometry between road and gravel.

INTEGRATION
ECHO Stem hides the brake cables, provides incredible stiffness and is painted to match.

COMPATIBILITY
The ECHO is compatible with all current electric road and gravel 1x and 2x drivetrain options from Shimano and SRAM.

BOTTLE MOUNTIS
2x downtube, and 1x seat tube

TIRE CLEARANCE
700x30mm in road mode, and 700x40mm in gravel mode.

**This is meant to give you an idea of what's possible with an Allied Echo. Allied bikes are built to order. Call or text us to get started on your Allied build.

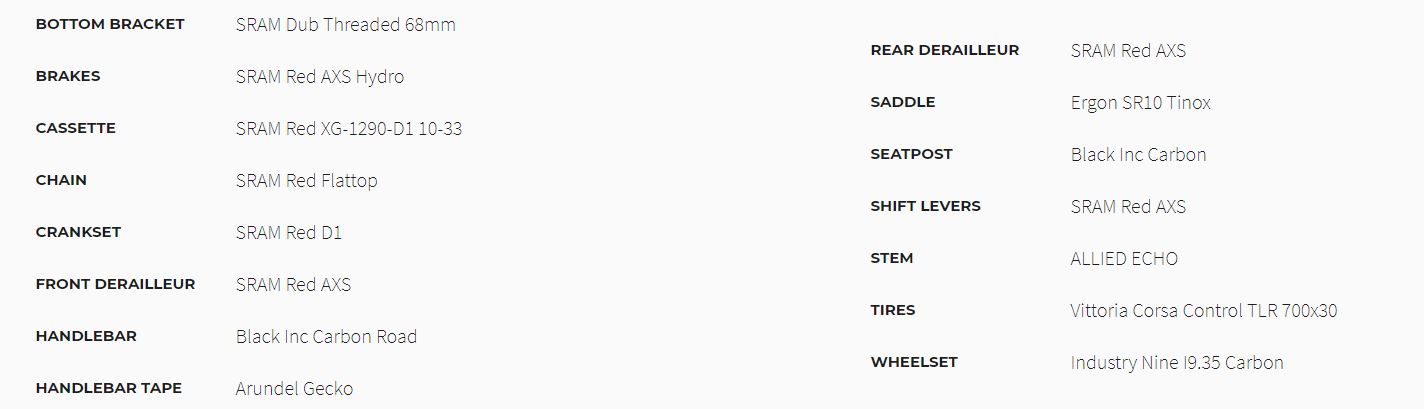

RED AXS Build Kit

FORCE AXS Build Kit

RIVAL AXS Build Kit

Specs

Frame USA Made Carbon

* Subject to change without notice.

Part Numbers

MPN Store SKU
Allied-Echo-Custom Allied-Echo
