Allied ECHO Demo Bike

Allied ECHO Demo Bike
  • Color: Matte Black
  • Color: Matte Ecru
  • Color: Matte Midnight Blue
  • Color: Gloss Maroon Metallic
  • Color: Gloss Slate
$5,242.50 - $5,467.50
$6,990.00 - $7,290.00
Rival AXS
Please select options



This listing if for our gently used fleet of Allied Echo demo bikes. These bikes are SRAM Rival AXS builds. Contact us for more information on condition and color if you are not local.

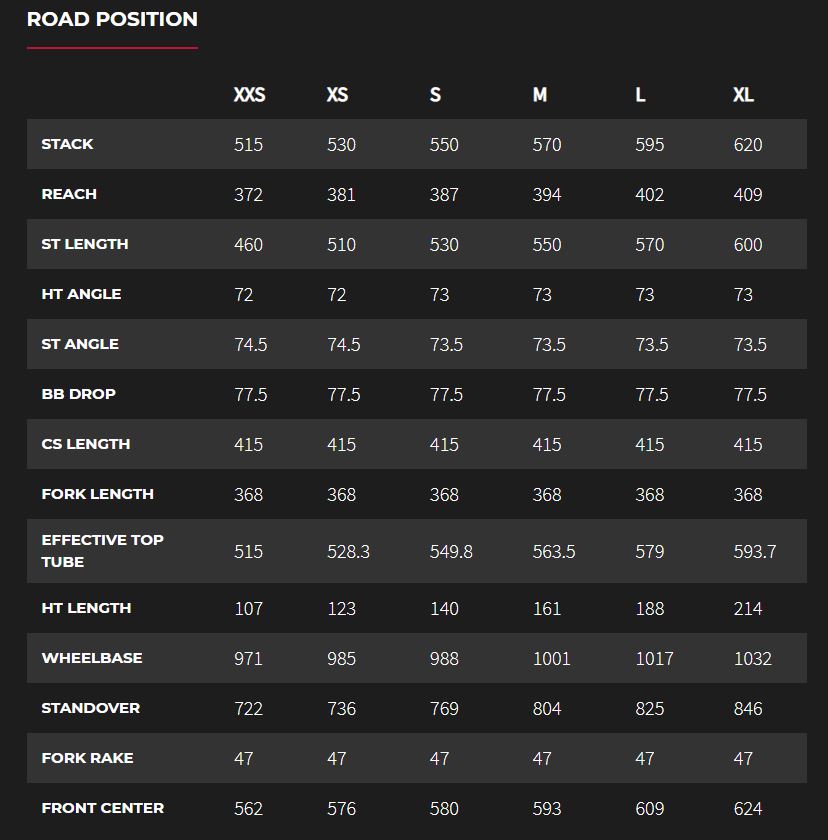

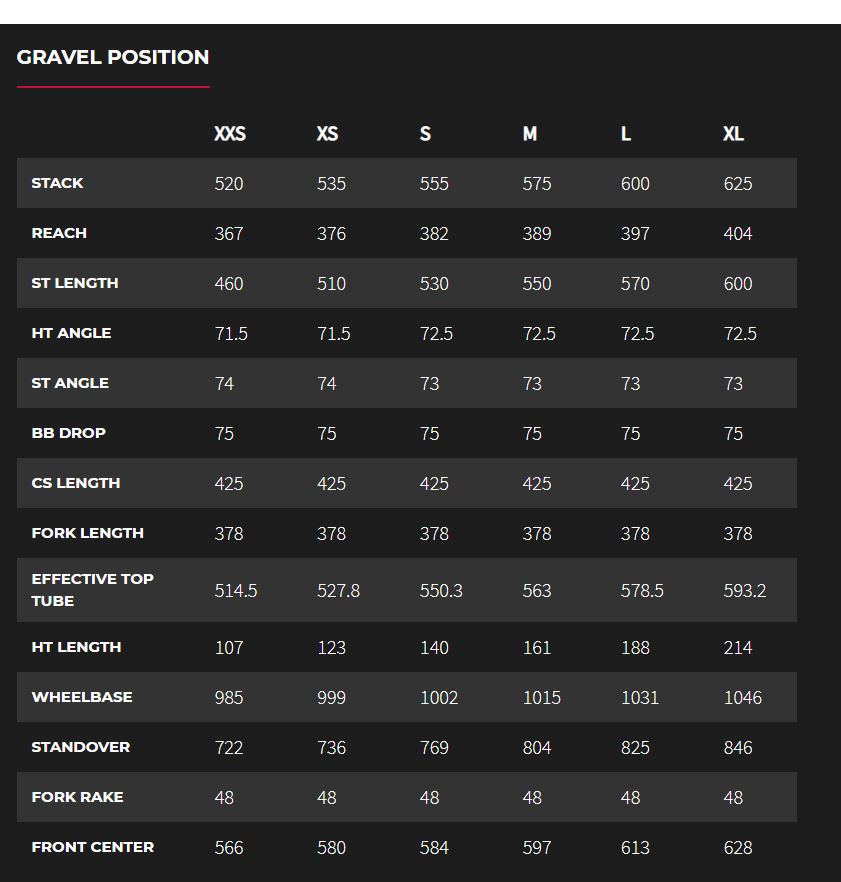

At the heart of the ECHO’s genetic code is pure unadulterated speed - the ability to transform from a road race thoroughbred to a versatile, agile gravel bike with a simple switch of flip chips at the front and rear dropouts. These eccentric chips, and corresponding dropout design allow the rider to easily change the bike geometry, effectively changing the chainstay length and fork length by 1 cm. The difference transforms the bike from a road machine with 415mm chainstay length, 368mm fork length, 73-degree headtube angle, and tire clearance for up to a 30mm, to a gravel bike with 425mm chainstay length, 378mm fork length, 72.5mm head tube angle, and 40mm tire clearance - all within a 10-minute switch of dropout chips. Pure road performance one day, gravel race-ready the next. One bike. No compromise.

The ECHO Stem is a fully integrated system designed in tandem with our fork to completely conceal the cables while still using a standard headset, allowing the rider to easily swap stem lengths, and it works with a growing list of handlebars designed with integrated cables in mind. The system is the simplest and most user-friendly on the market. The cables run through a channel on the top of the stem and are concealed by a faceplate, top cap, and the steerer tube. Headset adjustment is moved from the traditional position at the top of the stem to a threaded portion on the bottom of the stem that effectively increases the steerer clamp length to provide headset preload, much like a threaded headset. The Echo stem comes in 6 sizes from 80-130mm in 10mm increments and is a -6 degree. Like everything we do, the stem is MADE HERE in our Bentonville factory. A 100mm stem weighs 184g.

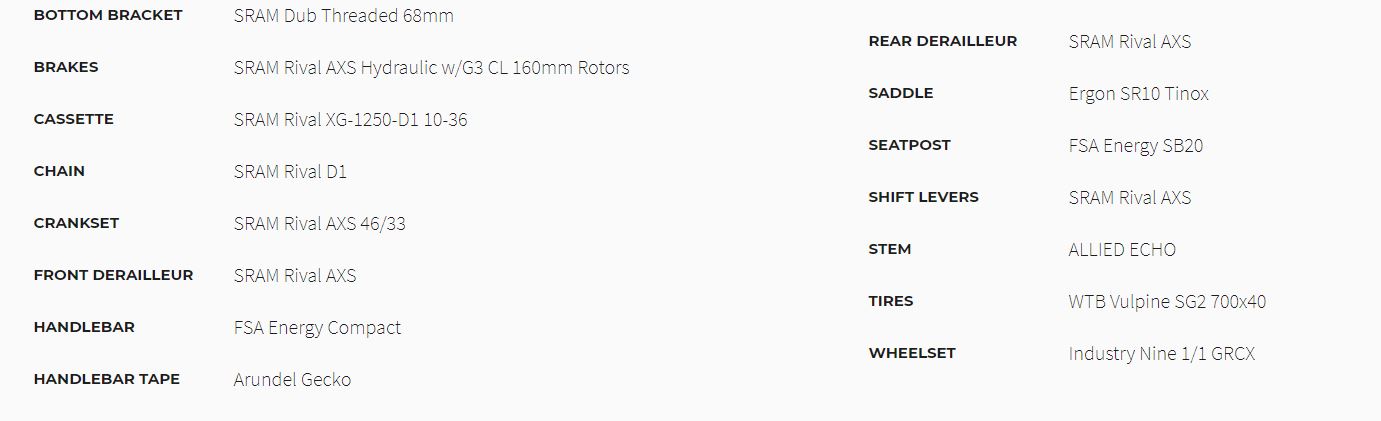

The ECHO isn’t an everyday racing beast. It’s actually two everyday racing beasts, each with a distinct personality. The SRAM Rival AXS brings precision, gear range, and simplicity of AXS to a much more affordable price point than what was possible before with Force. Our standard configuration comes paired with Industry Nine’s sturdy and wide 1/1 GRCX wheels and the all-new WTB Vulpine ultra fast-rolling tubeless gravel tire in 700x40, but you can select the exact wheel and tire combo to build your beast as you please.

Flip Chips change geometry between road and gravel.

ECHO Stem hides the brake cables, provides incredible stiffness and is painted to match.

The ECHO is compatible with all current electric road and gravel 1x and 2x drivetrain options from Shimano and SRAM.

2x downtube, and 1x seat tube

700x30mm in road mode, and 700x40mm in gravel mode.


Frame USA Made Carbon

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Matte Black / Rival AXS / Small 210000093384 210000093384
Matte Ecru / Rival AXS / XX-Small 210000093397 210000093397
Matte Midnight Blue / Rival AXS / X-Large 210000093398 210000093398
Gloss Maroon Metallic / Rival AXS / Large 210000093396 210000093396
Gloss Slate / Rival AXS / X-Small 210000093395 210000093395
