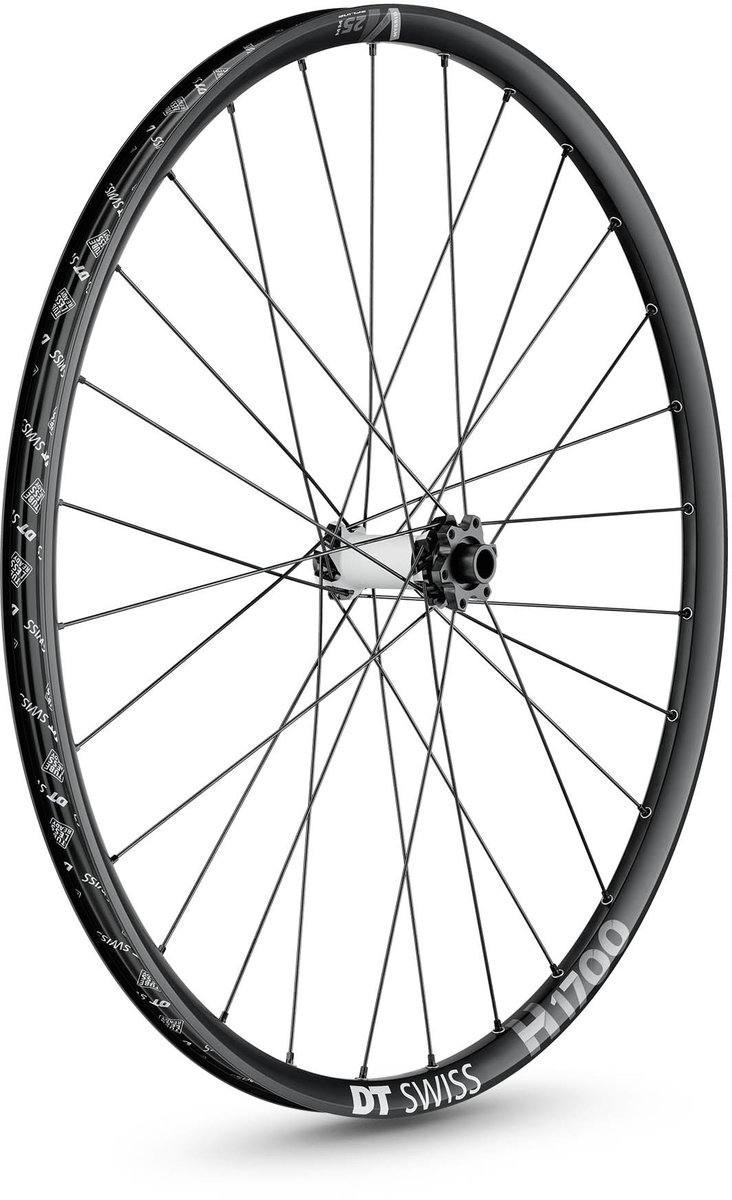

DT Swiss H 1700 SPLINE 25 29-inch Front

DT Swiss H 1700 SPLINE 25 29-inch Front
  • Color: Black
110 x 15mm
Please select options


MTB wheels should help you go up AND down mountains and have fun while doing so. The H 1700 SPLINE 25 does precisely that. And, because e-bikes allow you to go up and down many mountains in one ride, reliability and weight are key — both characteristics met by the H 1700 SPLINE 25. With unparalleled know-how in wheel component manufacturing and industry-leading testing processes, we are able to design and spec a wheelset to perform exactly as required, so all you have to worry about is pedaling.

Tubeless technology

Going tubeless allows you to run lower tire pressures without the added weight of a tube. Lower tire pressure has many benefits, including greater traction, lower rolling resistance over rough surfaces, and decreased risk of a puncture-related flat.

Tubeless-ready rims and tires are parts of a complete system that eliminate the need for tubes by creating an airtight chamber between the rim and tire. Liquid sealant is added to the chamber to fill small punctures and maintain air pressure while you ride.

UST (Universal Standard for Tubeless) is a specific type of tubeless system that dictates the shape of the rim and tire beads. UST rims should be paired with UST-specific tires for best results.


Rim Aluminum clincher
Brake Compatibility Disc IS (6-bolt)
Axle 110 x 15mm
Hub DT 350
Spokes DT hybrid 1
Nipples DT ProLock Squorx ProHead alu
Lacing 3-cross
Inner Rim Width 25mm
Outer Rim Width 30mm
Rim Depth 20mm
Valve Type Presta
Extras Tubeless tape 27mm, Tubeless valve MTB 32mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
110 x 15mm / Black / 29-inch 07613052066486 W0H1700BFIXSA08686 210000085412
