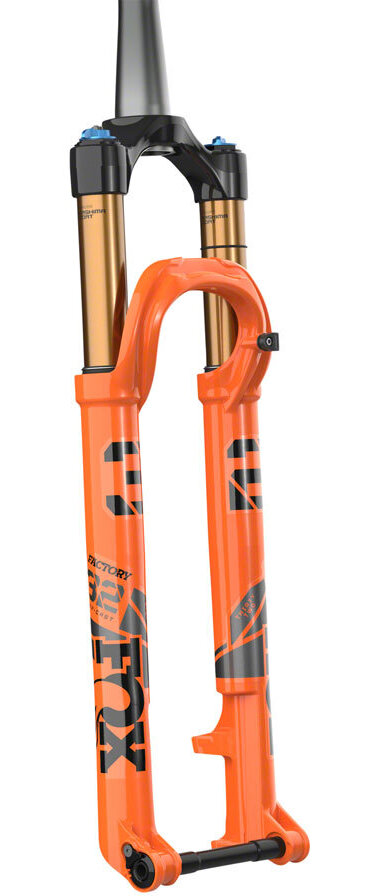

Fox 32 Step-Cast Factory Suspension Fork - 29", 100 mm, 15 x 110 mm, 44 mm Offset, Shiny Orange, FIT4, 3-Position

Fox 32 Step-Cast Factory Suspension Fork - 29", 100 mm, 15 x 110 mm, 44 mm Offset, Shiny Orange, FIT4, 3-Position
$949.00
Please select options

Details

Competition drives innovation, and as cross-country athletes and course designers push the boundaries of lightweight components, 32 Step-Cast Factory rises to meet the demand. A redesigned crown for 2020 increases stiffness to the same level as the trail-proven 34. The distinct shape of the Step-Cast chassis uses a narrow stance to save weight and the step design makes room for the spokes and brake rotor.

- Genuine Kashima Coating on upper tubes
- 32 mm upper tubes and ample bushing overlap for a quality ride
- Hollowed out lower legs provide even more weight savings
- FIT4 damper and FLOAT air spring

SPECIFICATIONS
- Positive Spring: Air
- Wheel Size: 29"
- Brake Type: Post Mount 160
- Crown Race: 40
- External Adjustments: Low Speed Compression Damping , Rebound Damping
- Negative Spring: Air
- Stanchion Diameter: 32
- Steerer Type: Tapered
- Maximum Tire Width: 58
- Offset: 44
- Color: Shiny Orange
- Steerer Tube Length (mm): 264
- Front Axle: 15mm Thru x 100mm
- S.H.I.S. Stem Clamp Diameter: 28.6
- Travel (mm): 100
- Axle to Crown Length: 501
- Lockout Switch: Crown

Part Numbers

UPC MPN Store SKU
821973418599 910-20-219 210000081531
