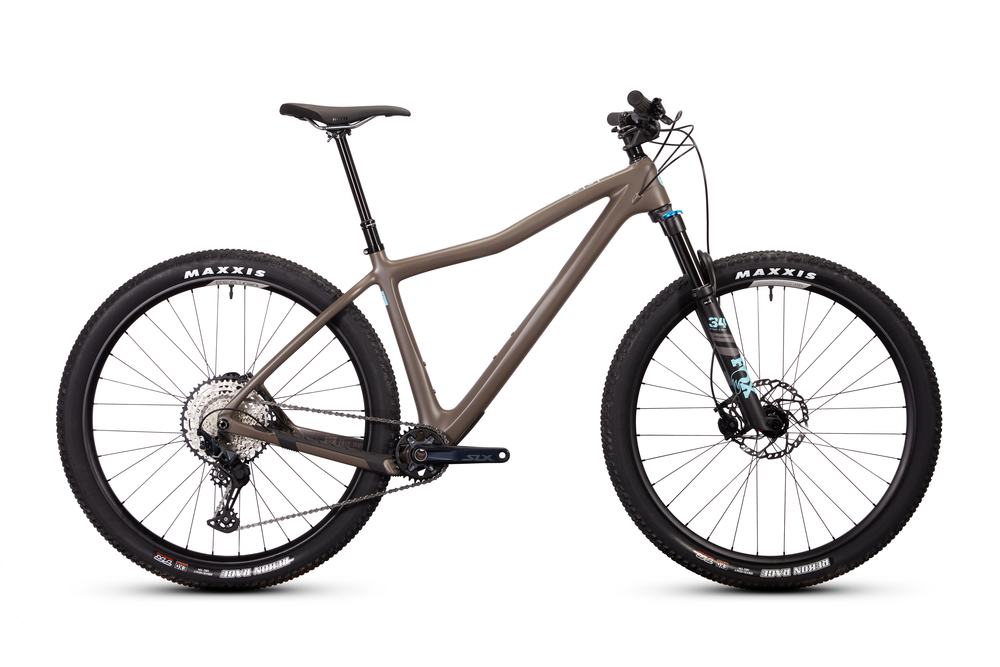

Ibis DV9 Deore
$3,499.00
Details
The DV9 is back! A do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter weight, with up to date geometry, and engineered to the same exacting standards as the rest of our line, it packs a ton of performance in a more accessible price.
| NOMINAL SIZE | SMALL | MEDIUM | LARGE | X-LARGE | |
|---|---|---|---|---|---|
| Seat Tube Length | A | 356 | 406 | 457 | 508 |
| Top Tube Length | B | 580 | 608 | 640 | 675 |
| Head Tube Length | C | 85 | 95 | 110 | 135 |
| Chainstay Length | D | 425 | 425 | 425 | 425 |
| Seat Tube Angle | E | 74° | 74.5° | 75° | 76° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 750 | 820 |
| Head Tube Angle | G | 66.5° | 66.5° | 66.5° | 66.5° |
| Wheelbase | H | 1100 | 1145 | 1186 | 1237 |
| Stack | I | 615 | 622 | 635 | 658 |
| Reach | J | 404 | 435 | 470 | 511 |
| BB Drop | K | 65 | 65 | 65 | 65 |
| BB Height (with Rekon 2.6" Tires) | 308 | 308 | 308 | 308 | |
| Standover | L | 693 | 714 | 762 | 776 |
| Trail | 114 | 114 | 114 | 114 |
| Small | 5'0"–5' 4" |
|---|---|
| Medium | 5'3"–5' 8" |
| Large | 5'7"-6'1" |
| X-Large | 6'–6'5" |
Specs
| Fork | Fox Float 34 Performance Series Step Cast 120mm |
|---|---|
| Hubs | Ibis Logo |
| Rims | Ibis 933 |
| Stem | Ibis 31.8mm, S/M: 40mm, L/XL: 50mm |
| Chain | SRAM NX Eagle |
| Frame | Ibis DV9 |
| Tires | Maxxis Recon Race 29" x 2.4" Exo/TR WT |
| Brakes | Shimano Deore M6100 2p |
| Rotors | Shimano RT66, 180/160mm |
| Saddle | WTB Silverado 142 |
| Spokes | Sapim |
| Headset | Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower |
| Crankset | SRAM NX Eagle DUB spindle, S/M: 170mm, L/XL: 175mm |
| Seatpost | KS Rage-i Dropper, S: 125mm, M: 150mm, L/XL: 170mm |
| Shifters | SRAM NX Eagle Trigger |
| Chainrings | 30t Alloy Ring |
| Handlebars | Ibis 780mm Alloy |
| Tape/Grips | Lizard Skin Charger Evo |
| Brake Levers | Shimano Deore M6100 |
| Bottom Bracket | SRAM DUB BSA |
| Rear Derailleur | SRAM GX Eagle |
| Cassette/Freewheel | SRAM XG 1275 10-52 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Muddy Water / Small / 29-inch | 840345303820 | DVC1BRSDEAL93 | 210000092412 |
| Muddy Water / Small / 29-inch | 840345303820 | DVC1BRSDEAL93 | 210000092412 |
| Muddy Water / Small / 29-inch | 840345303837 | DVC1BRSNGAL93 | 210000092413 |
| Muddy Water / Small / 29-inch | 840345303837 | DVC1BRSNGAL93 | 210000092413 |
| Purple Crush / Small / 29-inch | 840345303851 | DVC1PRSDEAL93 | 210000092415 |
| Purple Crush / Small / 29-inch | 840345303851 | DVC1PRSDEAL93 | 210000092415 |
| Purple Crush / Small / 29-inch | 840345303868 | DVC1PRSNGAL93 | 210000092416 |
| Purple Crush / Small / 29-inch | 840345303868 | DVC1PRSNGAL93 | 210000092416 |
| Purple Crush / Medium / 29-inch | 840345303912 | DVC2PRSDEAL93 | 210000092421 |
| Purple Crush / Medium / 29-inch | 840345303912 | DVC2PRSDEAL93 | 210000092421 |
| Muddy Water / Medium / 29-inch | 840345303882 | DVC2BRSDEAL93 | 210000092418 |
| Muddy Water / Medium / 29-inch | 840345303882 | DVC2BRSDEAL93 | 210000092418 |
| Muddy Water / Large / 29-inch | 840345303943 | DVC3BRSDEAL93 | 210000092424 |
| Muddy Water / Large / 29-inch | 840345303943 | DVC3BRSDEAL93 | 210000092424 |
| Purple Crush / Large / 29-inch | 840345303974 | DVC3PRSDEAL93 | 210000092427 |
| Purple Crush / Large / 29-inch | 840345303974 | DVC3PRSDEAL93 | 210000092427 |
| Purple Crush / X-Large / 29-inch | 840345304032 | DVC4PRSDEAL93 | 210000092433 |
| Purple Crush / X-Large / 29-inch | 840345304032 | DVC4PRSDEAL93 | 210000092433 |
| Muddy Water / X-Large / 29-inch | 840345304001 | DVC4BRSDEAL93 | 210000092430 |
| Muddy Water / X-Large / 29-inch | 840345304001 | DVC4BRSDEAL93 | 210000092430 |
Ibis DV9 Deore
$3,499.00
