Revelate Designs Harness

Revelate Designs Harness
This item is currently not available.

Details

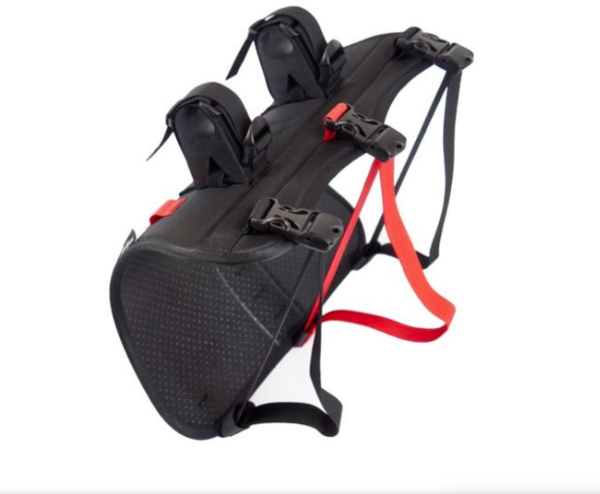

The Harness is a semi-rigid mount designed to carry drybags, packrafts, stuff sacks and other cylindrical shaped objects. Think of it as a “soft rack” for your handlebar, the harness has built in straps that excel at carrying light, bulky loads. Integrate it with any of our front pockets for a highly versatile carrying system.

When you need quick access to your stuff sack or dry bag, the Harness is ideal. Best used for widely varying loads, load it up with your tent, minus 40 degree sleeping system, packraft, ultralight drybags, fishing gear or a mini keg. Use your imagination.

Relying on a flexible connection, the Harness is crash-proof as there are no rigid connections to fail if you wreck in the middle of nowhere. Our 3 strap design allows for balanced and easy bag mounting - center the load and fasten the middle strap first, then the outer 2.

- Molded rubber spacer blocks provide offset from handlebars reducing lever & cable interference
- Fiberglass cross-bar provides lateral stiffness across the three straps
- 3-layer, compression molded EVA composite material
- Grippy inner surface keeps your load in place
- Easy access buckles with locking cam straps
- Optional attachment straps for front pocket attachment
- Cam locking crown / head tube center strap with EVA spacer block
- Made in the USA with domestic and imported materials

FIT
- Drop bar users - The Harness works fine with drop bars; you are limited in the width of the main bag you mount in it, but can opt for a larger diameter drybag.
- Disk or V Brake only - The Harness is not compatible with cantilever or road style front brakes with a vertical exposed cable.
- 15 lb / 6.8 kg weight limit

SPECIFICATIONS
- Weight: 15 oz / 425 g
- Volume: Max drybag capacity is 1220 in³ / 20 L
- Materials: EVA composite.

Part Numbers

UPC MPN Store SKU
852769007468 RD-004-393 210000038561
