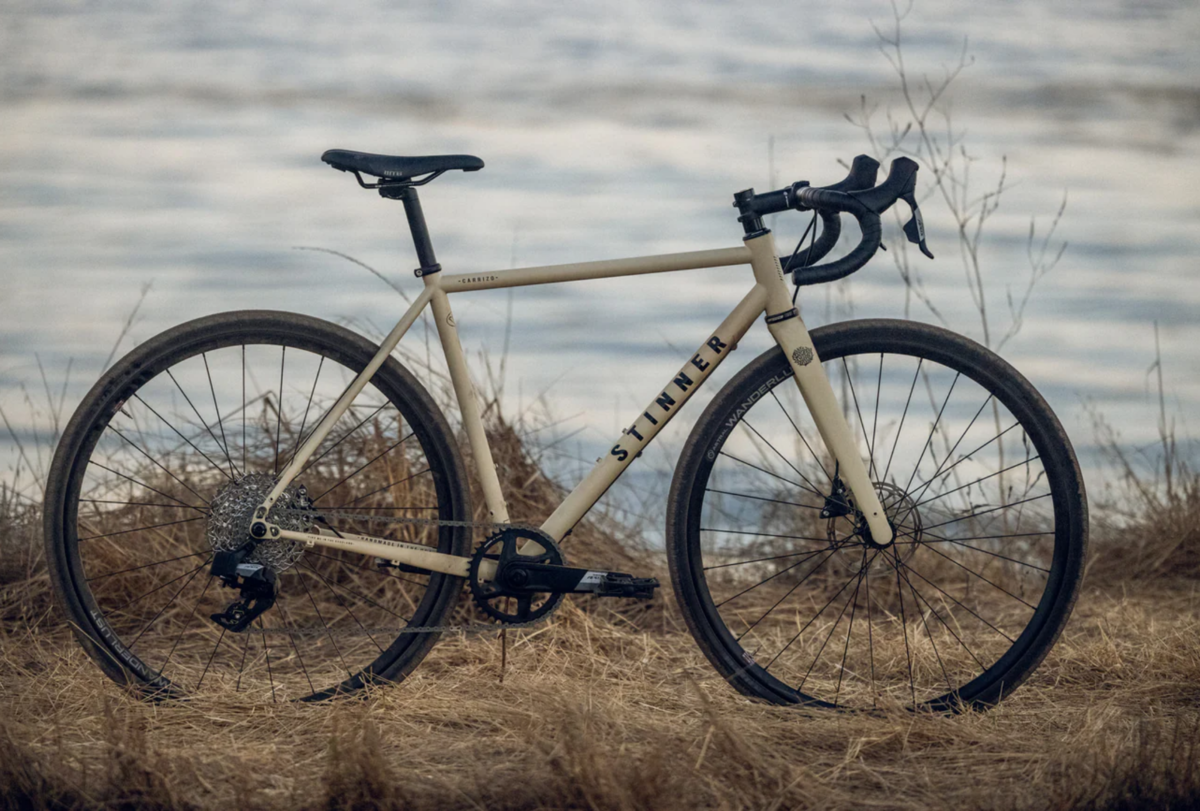

Stinner Carrizo Select

Inspired by the rugged beauty of Carrizo Plain National Monument, the Carrizo Select embodies the true spirit of adventure. Built to handle any terrain, this all-road bike offers a smooth, responsive ride that grows with your skills. Handcrafted from premium steel, the Carrizo Select blends the performance and durability of our Select Series with the versatile, exploration-ready design of the Carrizo. Whether you're just starting your journey or looking to take your cycling to the next level, this bike promises reliable performance and lasting enjoyment—at an unbeatable value.

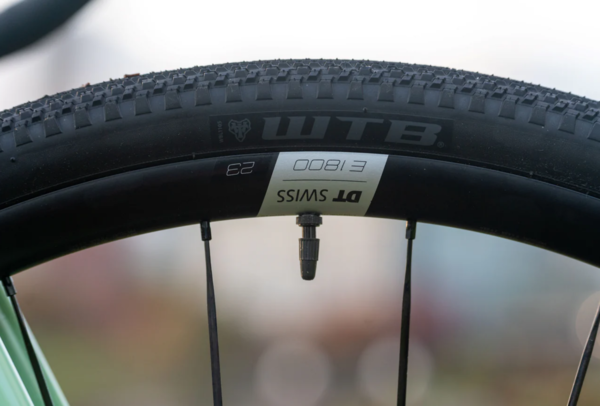

Bigger is better - 700 x 40c

- Ample tire size for any terrain. Fast on the road and smooth on the dirt.

Designed by Us - UDH Dropouts

- Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our own parts to build a better product.

Keep rolling - Easy upkeep

- We made sure to use long standing industry standards when designing the Select Series. Nothing proprietary to hold you back when it comes time for maintenance.

Make it Yours - Adjustablity

- The Carrizo Select frameset is extremely versatile. It supports both mechanical and wireless drivetrains, even the latest Full Mount derailleurs from SRAM. External routing makes it easy to dial in your fit and gives you the ability to quickly swap parts as you make it your own.

Made in the USA - Steel frameset

- The Carrizo Select frame features a complete Columbus Zona steel tube set.

Focus on the ride - Lifetime Warranty

- Every Stinner frame is backed by a lifetime warranty against manufacture defects.

Frame:

- Material // Complete Columbus Zona Steel Tube Set
- Finish // Durable Powder Coat
- Dropouts // Stinner UDH 160mm Flat Mount Steel Dropouts
- Drivetrain Compatibility // Mechanical 2x or 1x (full length housing) / SRAM AXS - Transmission/Full Mount compatible / Shimano 12spd Di2
- MAX Tire Clearance // 700 x 40mm
- MAX Tire Clearance w/ Fenders // 700 x 35mm
- MAX Chainring Clearance // 2x: 50/34t (44.5mm chainline) 1x: 44t (47.5mm chainline)
- Dropout Spacing // 142 x 12mm
- Rear Axle // 166mm - M12 x 1.0 - 15mm threaded portion
- Brake Mount // Flat Mount 160mm
- MAX Rotor Size // 160mm
- Brake Routing // External w/bolt-on and zip-tie guides
- Seatpost Diameter // 27.2mm
- Seatpost Clamp Diameter // 30mm
- Front Derailleur Clamp Diameter // 28.6mm
- Bottom Bracket // BSA 68mm wide shell (12spd Di2 must use a 24mm spindle crankset)
- Headtube Diameter // 44mm Internal Top and Bottom
- Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40
- Mounts // Fender Mounts and 3 bottle cage locations

Fork:

- Material // Full Carbon
- MAX Tire Clearance // 700 x 40mm
- MAX Tire Clearance w/ Fenders // 700 x 35mm
- Dropout Spacing // 100 x 12mm
- Front Axle // 120mm - M12 x 1.5
- Brake Mount // Flat Mount 140mm
- MAX Rotor Size // 160mm
- Brake Routing // External - Internal through non-drive leg
- Steerer // 1.5" Tapered
- Steerer Length // 350mm
- Crown Race // 40mm
- Axle to Crown // 382mm
- Rake // 47mm
- Mounts // Fender Mounts
