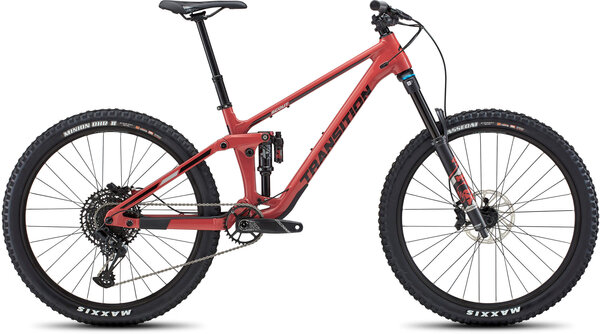

Transition Scout NX Alloy

Transition Scout NX Alloy
  • Color: Classy Black
  • Color: Raspberry
$3,899.00
Please select options
Order now and pick up in-store for free

Details

The Composed Sport Bike. Hop on the Scout and you're immediately transformed into a projectile.

140mm Rear / 150mm Front / 27.5 Wheels

The Scout will awaken your inner child. Manual here, scrub that, skid there, pedal up this. Freedom to boost everything in sight, overshoot every landing without a care, mixed with nose bonking and hooting your way down the trail. Sporty, but just as eager to tackle bigger terrain. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective. Pedal up and repeat.

LIFETIME WARRANTY
At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.

PIVOT TECHNOLOGY
Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.

FRAME PROTECTION
We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.

BADASS BEARINGS
We exclusively use EnduroMAX suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.

GEAR ACCESSORY MOUNT
Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.

MEGA SEATPOST INSERTION
Dropper posts keep getting longer so we combine short seat tube lengths with mega seatpost insertion to help get your saddle completely out of the way.

TIRE CLEARANCE
Ample clearance for mud and tires up to 2.6" width.

USER-FRIENDLY CABLE ROUTING
To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

THREADED BB
A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit BB related noises.

Specs

Frame Scout Alloy 140mm
Fork Fox Float 36 Rhythm 150mm Travel/37mm Offset
Headset FSA No.57E
Rear Shock Fox Float X Performance 2 Position
Rims/Wheels Stans Flow D
Hubs Novatech D791SB/D902SB
Spokes Pillar Double Butted
Tires Maxxis Assegai 3C EXO+ (27.5x2.5) / Maxxis Minion DHRII 3C EXO+ (27.5x2.4)
Crankset SRAM Descendent 6k DUB (30t-165mm)
Chain SRAM NX Eagle
Rear Derailleur SRAM NX Eagle
Rear Cogs SRAM PG 1230 (11-50t)
Shifters SRAM NX Eagle MMX
Handlebars RaceFace Chester 35 XS/SM (780x20), MD/LG/XL (780x35)
Tape/Grips Sensus Lite
Stem RaceFace Aeffect R (40mm)
Brakes SRAM Code R
Saddle ANVL Forge Cromo
Seat Post OneUp Dropper Post: XS (120mm) SM (150mm) MD (180mm) LG/XL (210mm)
Color(s) CLassy Black / Raspberry
Sizes XS / S / M / L
Weight 34.8 lbs / 15.79kg (Size MD)

* Subject to change without notice.

Videos

Scout Tech Video

John Goes for a Test Ride

Part Numbers

Option MPN Store SKU
Classy Black / Small 01.22.11.3132 210000081099
Classy Black / Medium 01.22.11.3134 210000081100
Classy Black / Large 01.22.11.3136 210000081101
Raspberry / Small 01.22.11.3133 210000081102
Raspberry / Medium 01.22.11.3135 210000081103
Raspberry / Large 01.22.11.3137 210000081104
