Details

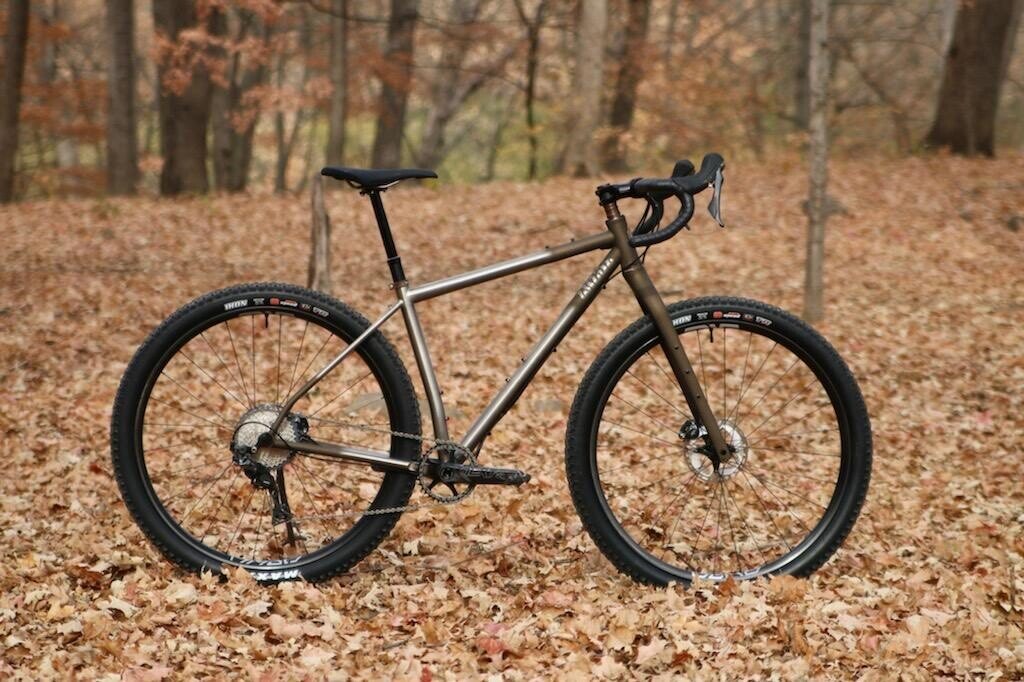

Our signature drop-bar bike packing frameset built with big miles and big plans in mind. A true go-anywhere, do-anything machine, if you can conceive it you can achieve it aboard the Dream Engine.
The Dream Engine is hand built in the USA and designed for the Tour Divide, back country exploration, fire roads and single track excursions. Of course it can also crush gravel and tour as well.
It fits a very large tire has boatloads of mud clearance and was built with all-day and multi-day comfort in mind.
You’ll find a full suite of features that include:
- Three pack mounts on top and bottom of the down tube, bottle mount on the seat tube, top tube bag mounts, rack and fender mounts.
- The frame is built around the Salsa Cutthroat fork which has three-pack mounts on each leg and internal dynamo and brake routing.
- For cable management, we’ve chosen to use Paragon’s modular system which allows the cleanest possible appearance and can be customized for AXS or 1X mountain setups. We use full-round cable guides on the stays as we find plastic zip ties on high-end bikes to be an inelegant compromise.
- Clearance for 29x2.6" tires.

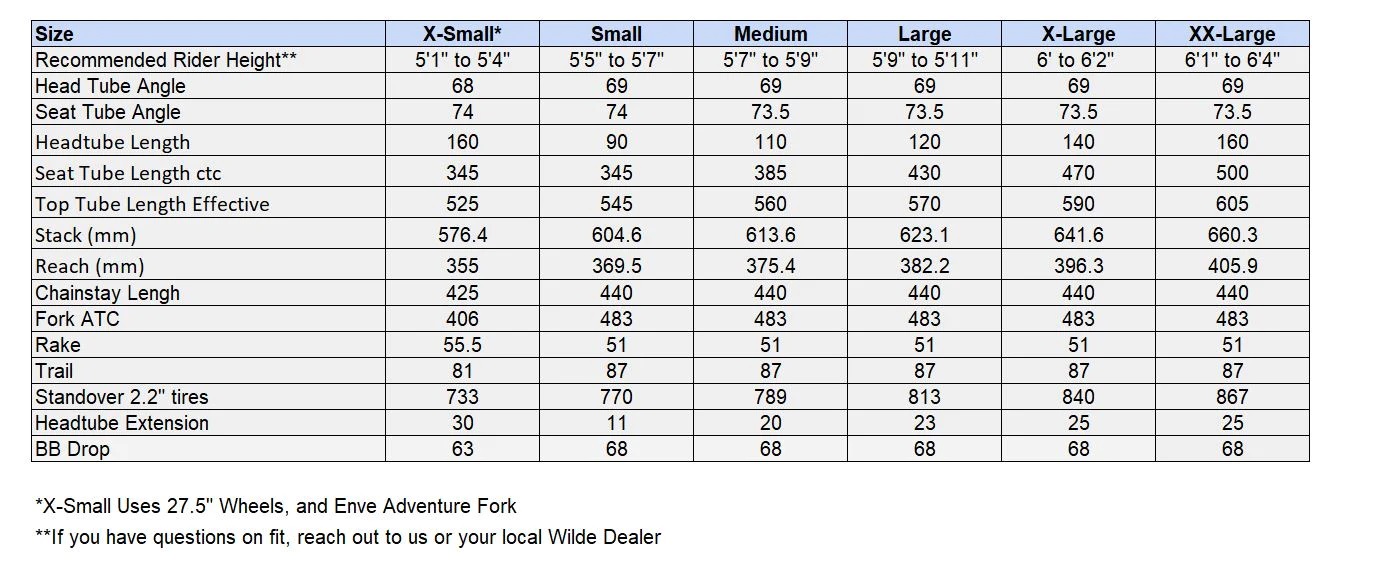

GEOMETRY
Drop bar off-road geometry designed to be nimble in the tight stuff and carry a load with stability and confidence. The generous stack, and longer wheelbase provide comfort and stability when riding all day or descending on loose terrain.
Specs
Frame | Wilde Dream Engine Ti - 56cm |
---|---|
Fork | Carbon fork |
Headset | Wolf Tooth Premium Headsets – Espresso - Upper and Lower / ZS44/28.6 6mm Stack Upper / EC44 Lower / Espresso; Wolf Tooth Headset Spacer Kit 3, 5,10, 15mm, Espresso |
Rims | ENVE Composites AM30 Foundation Wheelset - 29", 15 x110/148mm, Center-Lock, HG 10, Black |
Hubs | Industry 9 |
Tires | Maxxis Ikon 29 x 2.35 120 TPI |
Crankset | RaceFace Next R Crankset - 170mm, Direct Mount, RaceFace CINCH Spindle Interface, Black |
Chainrings | RaceFace Narrow Wide Chainring: Direct Mount CINCH 36t Black |
Bottom Bracket | RaceFace CINCH Bottom Bracket: BSA 100mm Shell x 30mm Spindle, External Seal |
Rear Cog(s) | Shimano GRX 11-42t |
Handlebars | ENVE Composites G Series Gravel Drop Handlebar - Carbon 31.8mm 48cm Black |
Tape/Grips | ENVE Composites Bar Tape - Black |
Stem | Thomson Elite X4 Mountain Stem - 80mm 31.8 Clamp +/-10 1 1/8 Aluminum Black |
Brakes | Shimano GRX |
Saddle | WTB |
Seat Post | Wolf Tooth Resolve Dropper Post - 30.9mm - 160mm |
Seat Binder | Wolf Tooth Seat collar - 34.9 Espresso |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Large | 210000090238 | 210000090238 |
