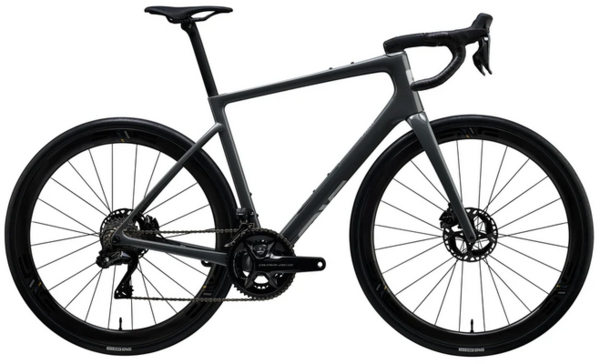

ENVE Composites Fray

ENVE Composites Fray
  • Color: Ash
  • Color: Venom
  • Color: Salt
$5,500.00
Color: Ash
Size: Select size
Please select options Unavailable

Details

Performance and Versatility for Any Road

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

*****************************************************************
The Fray chassis (frame, fork, seatpost, stem, bars, headset) is the canvas upon which you can create your dream bike. This is a base build....give us a call to discuss cockpit and wheel options, as well as options for a complete bike.
*****************************************************************

Tire Clearance For Any Road

Capable of accommodating tires between 36mm and 40mm for when mixed-surface missions call. The Fray's geometry is optimized for tires between 31mm and 35mm.

Long roads to roads less traveled

The Fray takes design cues from our Melee, but where the Melee prioritizes pure speed, the Fray balances speed and versatility. Featuring aero tubing and ample clearance for wider tires.

In-frame storage

The Cargo Bay is an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.

Top Tube Mount

The top tube accessory mount allows you to keep food and nutrition close at hand.

Down Tube Mount

The down tube mount conveniently stores an extra water bottle, tool kit, or pack to help ensure adequate storage on longer rides or multi-day adventures.

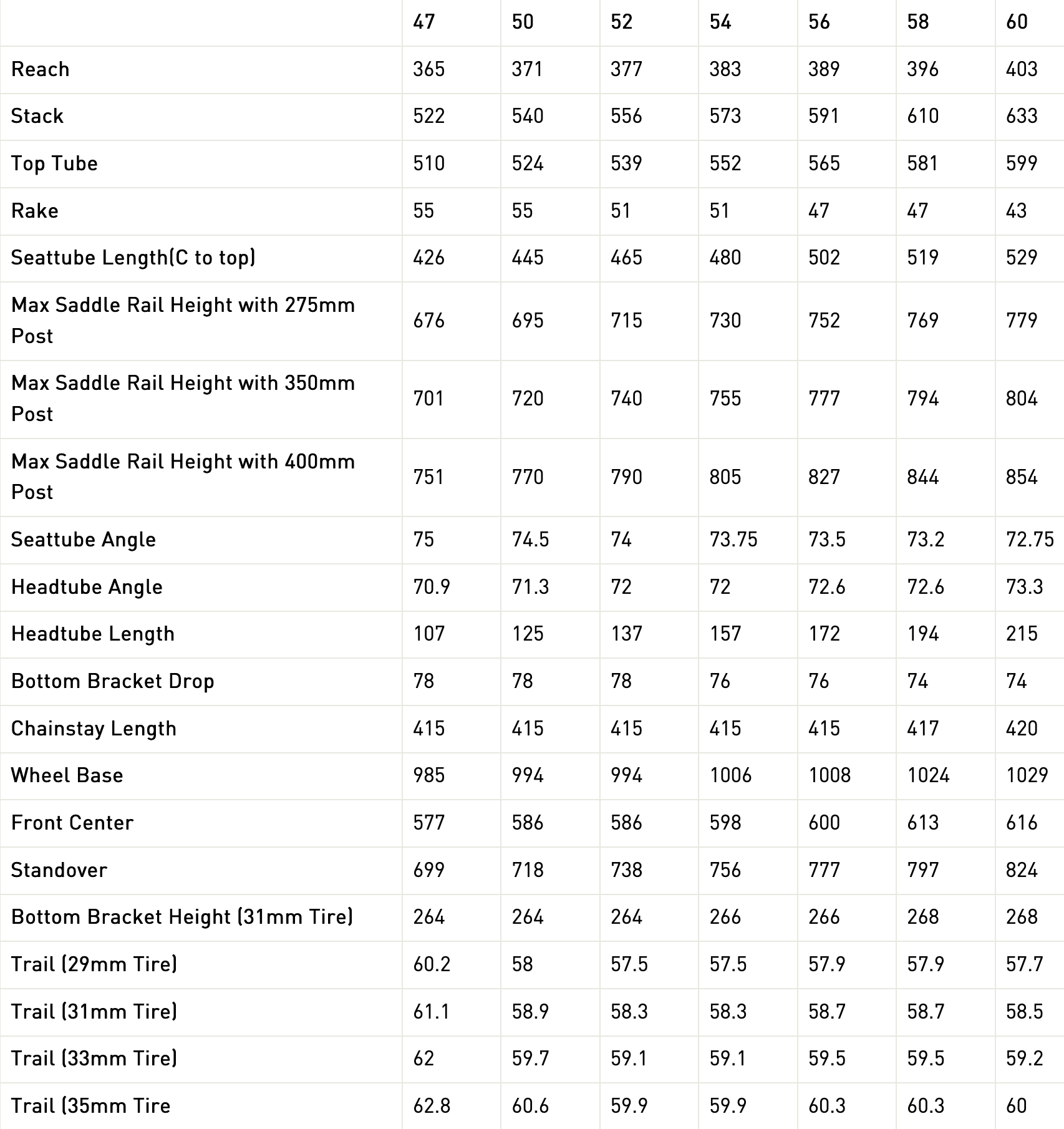

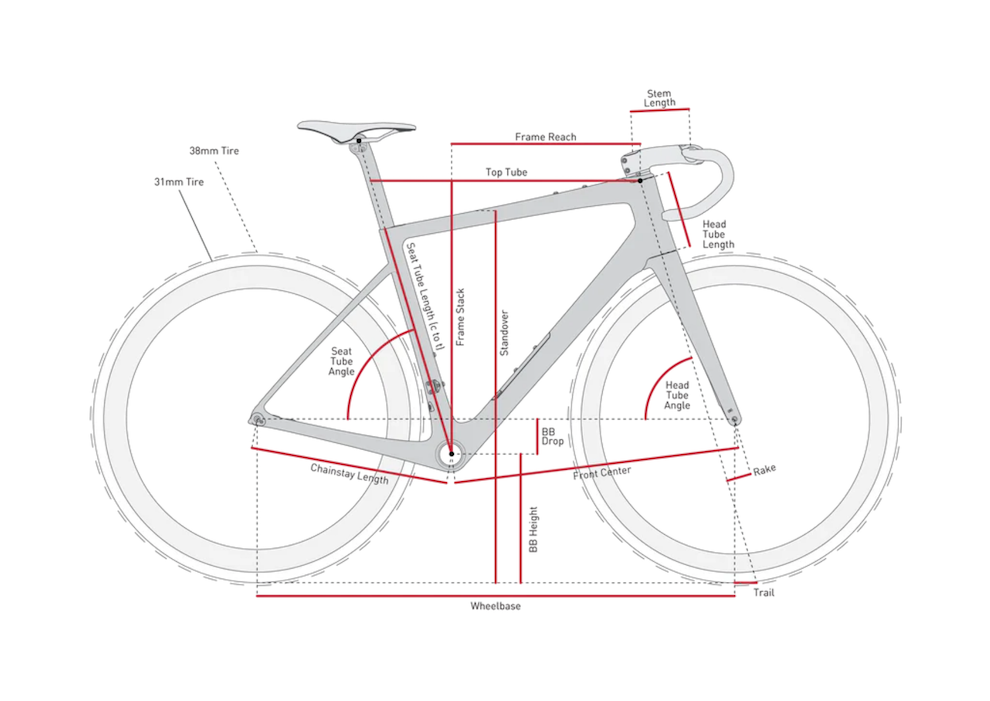

Fit and Geometry

You are only as fast as your fit allows. The Fray is available in seven frame sizes, with four fork rakes, while the handlebar, stem, and seatpost options are a la carte.

These options make the Fray the most readily customizable fixed geometry Endurance/All Road bike on the market.

Integrated for Speed

The IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.

RideTuned

While three fork rakes can service the bulk of riders, we’ve added an extra fork rake to accommodate more riders. This ensures that the Fray, regardless of size, will deliver the same level of responsive, confidence-inspiring handling required of a performance road bike.

Shaped for Speed

Developed in CFD and the wind tunnel, the Fray features refined tube shapes that have been tuned to complement our own SES™ rim shapes and deliver aerodynamic performance that is Real-World Fast™. Additional features such as the IN-Route System add to the Fray's slippery design.

Real-world fast

The Fray takes design cues from our Melee, but where the Melee prioritizes pure speed, the Fray balances speed and versatility. Featuring aero tubing and ample clearance for wider tires.

- Balanced for aero efficiency and weight savings
- Tube shapes complement SES rim shapes
- Integrated Front-End hides wires and brake hoses
- Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph

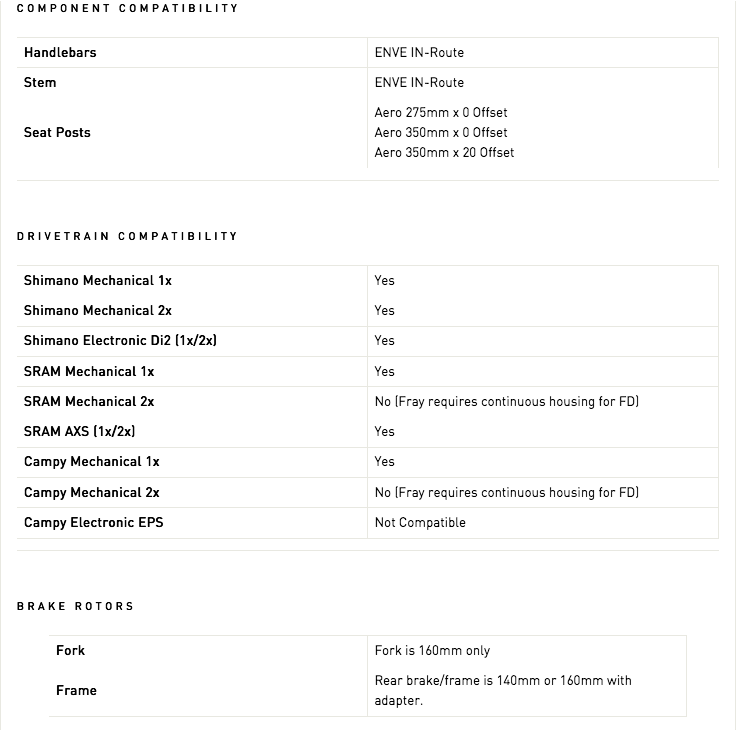

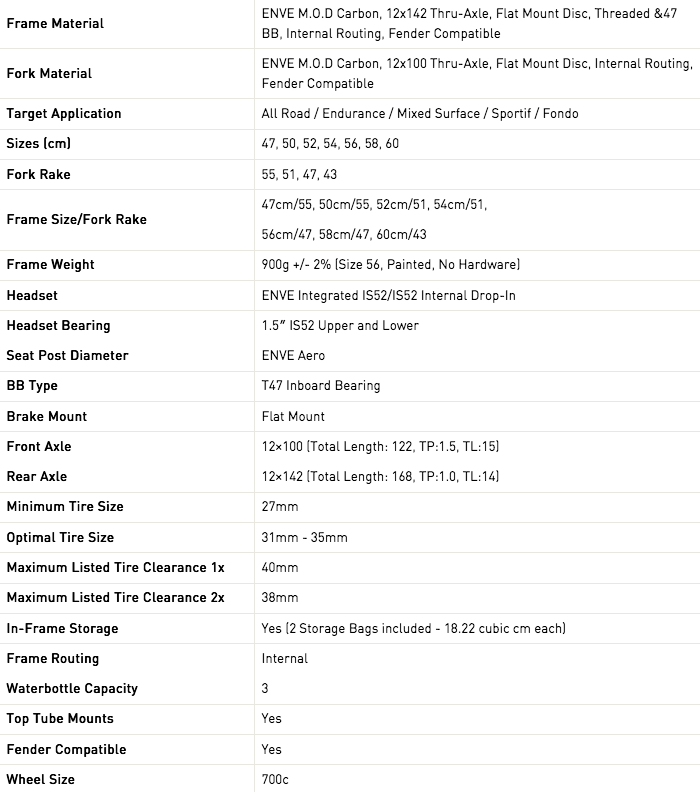

Specs

Frame ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Headset ENVE Integrated IS52/IS52 Internal Drop-In, 1.5? IS52 Upper and Lower bearing
Rims/Wheels Front axle: 12×100 (Total Length: 122, TP:1.5, TL:15); Rear axle: 12×142 (Total Length: 168, TP:1.0, TL:14)
Tires Min: 27mm, Optimal: 31mm - 35mm, Max 1x: 40mm, Max 2x: 38mm
Bottom Bracket T47 Inboard Bearing (not included)
Front Derailleur Optional
Rear Derailleur UDH compatible
Handlebars ENVE IN-Route
Stem ENVE IN-Route
Brakes Flat Mount; Fork is 160mm only; Rear brake/frame is 140mm or 160mm with adapter
Seat Post ENVE Aero, 0mm or 25mm offset
Weight 900g +/- 2% (Size 56, Painted, No Hardware)

* Subject to change without notice.

Videos

Fray - Performance and Versatility
