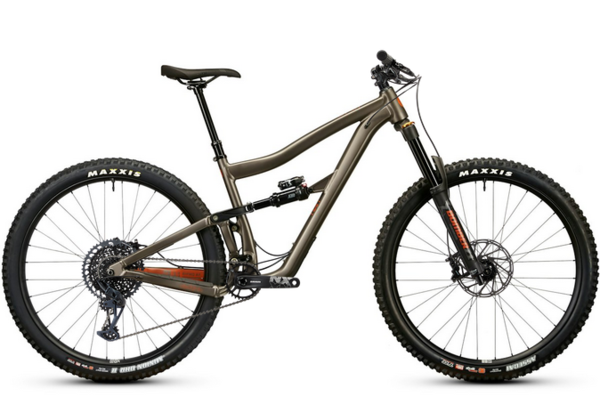

Ibis Ripmo AF UDH

Ibis Ripmo AF UDH
  • Color: Cinnabon Bronze
  • Color: Espresso Black
$2,199.00 - $3,699.00
Please select options

Details

The Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It’s everything we love from the carbon Ripmo, plus a few tweaks.

It’s Metal

Over our long tenure from moun­tain biking’s awk­ward ado­les­cence to its cur­rent any­thing-shred­dy era, we’ve exper­i­ment­ed with steel, alu­minum and tita­ni­um?—?remem­ber the Bow-Ti, the first super­bike? We remem­ber the met­al times too, and it feels good to offer a pre­mi­um ride expe­ri­ence to our broad­en­ing fam­ily of rid­ers, cour­tesy of durable, afford­able alu­minum alloy.

Universal Derailleur Hanger

The Rip­mo AF UDH fea­tures a UDH derailleur for max­i­mum future com­pat­i­bil­i­ty and moves to a 55mm chain line. The wider chain line allows for a stiffer chainstay.

Modern Geometry

With a steep, 76-degree seat tube angle and a rangy but not stratos­pher­ic reach, the Rip­mo AF places rid­ers cen­tral­ly and upright over the bot­tom brack­et. It makes for an effi­cient posi­tion that can go the long haul with­out plac­ing too much weight on its slack, 64.9-degree head­tube angle. A 44mm reduced-off­set fork is more sure­foot­ed on steep descents and stead­ies high speeds. Bet­ter up, bet­ter down.

DW Link

Since 2005, we’ve part­nered with sus­pen­sion guru Dave Wea­gle on the dw-link sus­pen­sion plat­form. It pro­vides an unpar­al­leled com­bi­na­tion of climb­ing effi­cien­cy and down­hill per­for­mance, which has been proven repeat­ed­ly at the high­est lev­els of racing.

Air & Coil Compatible

The Rip­mo AF is com­pat­i­ble with both coil and air shocks due to a more pro­gres­sive lever­age rate. It allows for coil’s lin­ear­i­ty to thrive and we spec air shocks with tunes that pro­vide pop with­out feel­ing too harsh. On the trail, it gives the sus­pen­sion a sup­ple feel through­out the entire­ty of the stroke, enhanc­ing trac­tion no mat­ter how deep you dig.

2.6” Tire Clearance

Ibis helped pio­neer the wide rim rev­o­lu­tion, which inspired the new crop of wider 2.4”?—?2.6” tires. When paired togeth­er, this com­bo can be run at ultra low pres­sures which results in elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing straight line speed.

Pick Your Size

We use words like small, medi­um, and large to describe our siz­ing because it’s easy to under­stand, but our ultra low stan­dovers give you the abil­i­ty to size your frame based on reach and preference.

Long Dropper Post

What’s bet­ter than a drop­per post? A longer one. Our frames are designed to accom­mo­date the longest drop­per posts pos­si­ble. Rid­ers over 5’8 (or 173cm) can eas­i­ly run a 185mm drop­per post, while folks between 5’ and 5’8 (152cm?—?172cm) can use a post 125mm or longer depend­ing on inseam length.

Removable ISCG05 Mount

Our option­al ISCG 05 mount is there if you want it, remov­able if you don’t.

Seven Year Warranty

We stand behind our prod­ucts. If it’s our fault, we’ll fix it. Our alu­minum frames are backed by the same 7 year war­ran­ty and excel­lent cus­tomer ser­vice as our car­bon products.

Specs

Frame Ripmo AF
Fork Marzocchi Bomber Z1 Coil, 160mm, 44mm offset, 29”, 110x15mm Medium spring installed.
Headset Cane Creek 40 ZS44/ZS56
Rear Shock Marzocchi Bomber Air, 210 x 55
Rims/Wheels Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs
Tires Maxxis Assegai 29" x 2.5" EXO+ casing, 120tpi / Maxxis DHR II 29" x 2.4" EXO+ casing, 60tpi
Crankset Shimano SLX M7120 24mm spindle, 30t Alloy Ring
Bottom Bracket Shimano SLX BB52
Chain Shimano SLX M7100
Rear Derailleur Shimano SLX M7120, Shadow Plus
Rear Cogs Shimano SLX, 10-51T
Shifters Shimano SLX M7120
Handlebars Ibis Aluminum, 780mm
Tape/Grips Lizard Skin Charger
Stem Ibis 31.8mm; S/M: 40mm, L/XL: 50mm
Brakes Shimano SLX M7120, 4 piston; Shimano SM-RT66 rotors, 203mm/180mm
Saddle WTB Silverado, 142mm
Seat Post Bike Yoke Revive Dropper S: 125mm, M: 160mm, L: 185mm, XL/XXL: 213mm. Note there is a 250lb rider weight limit on this post.

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Cinnabon Bronze / Frame Only / Small
Cinnabon Bronze / SRAM NGX / Small
Cinnabon Bronze / Shimano Deore / Small
Cinnabon Bronze / Shimano SLX / Small
Cinnabon Bronze / Frame Only / Medium
Cinnabon Bronze / SRAM NGX / Medium
Cinnabon Bronze / Shimano Deore / Medium
Cinnabon Bronze / Shimano SLX / Medium
Cinnabon Bronze / Frame Only / Large
Cinnabon Bronze / SRAM NGX / Large
Cinnabon Bronze / Shimano Deore / Large
Cinnabon Bronze / Shimano SLX / Large
Cinnabon Bronze / Frame Only / X-Large
Cinnabon Bronze / SRAM NGX / X-Large
Cinnabon Bronze / Shimano Deore / X-Large
Cinnabon Bronze / Shimano SLX / X-Large
Espresso Black / Frame Only / Small
Espresso Black / SRAM NGX / Small
Espresso Black / Shimano Deore / Small
Espresso Black / Shimano SLX / Small
Espresso Black / Frame Only / Medium
Espresso Black / SRAM NGX / Medium RMA2BCSNGAL35 210000098794
Espresso Black / Shimano Deore / Medium
Espresso Black / Shimano SLX / Medium
Espresso Black / Frame Only / Large
Espresso Black / SRAM NGX / Large
Espresso Black / Shimano Deore / Large
Espresso Black / Shimano SLX / Large
Espresso Black / Frame Only / X-Large
Espresso Black / SRAM NGX / X-Large
Espresso Black / Shimano Deore / X-Large
Espresso Black / Shimano SLX / X-Large
