Otso Waheela C Frameset

Otso Waheela C Frameset
  • Color: Matte Slate/Grey
  • Color: Gloss Turquoise/Teal
  • Color: Matte Olive/Black
  • Color: Gloss Goldenrod/Yellow
  • Color: Gloss Lilac/Purple
  • Color: Gloss Copper/Black
Please select options

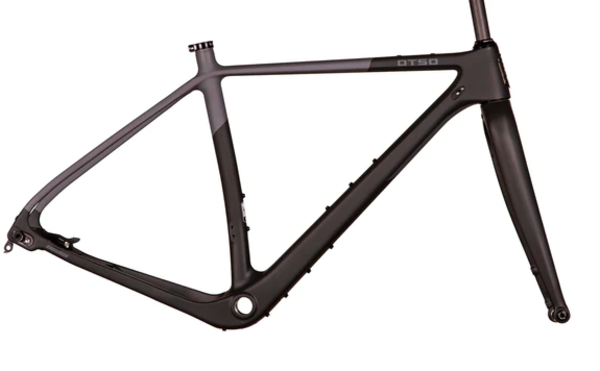

Fun things happen when a bike is designed to be as versatile as its rider. Waheela C is a carbon-framed drop bar bike with an adjustable geometry, unrivaled ride quality, suspension-corrected geometry for a suspension fork, and enormous tire clearance for 700c x 54mm, 650b x 54mm, or 29" x 2.1" tires. It also has extra frame and fork mounting points for bottles and racks, easily accessible internal cable routing options, compatibility for 1x or 2x electronic or mechanical drivetrains, and the ability to run a dropper post. When the same bike can be found racing Unbound, riding Tour Divide, hopping CX barriers, loaded up for weekend overnighters, and cruising weekly group rides, the performance-first versatility speaks for itself.

Note: Otso is a close partner whose warehouse is located just a few miles from ACF. We show Otso's bike catalog as in-store because we can get bikes and frames same or next day. Please call to ensure we have the size you are looking for built and in-store before stopping by for a test ride.

Call it three bikes in one. Call it a quiver killer. Call it the ultimate all-around gravel bike.

- Bottom bracket standard: 68mm BSA threaded
- Q-factor: 146mm with Shimano 105 crankset
- Maximum chainring size: 2x 53T round; 1x 46T for 45.5-47mm chainline; 1x 48T for 47.5-48.5mm chainline; 1x 50T for 49mm chainline; for oval, reduce the max allowed by 2 teeth
- Front derailleur type: Braze-On, bottom pull
- Headset: ZS44/28.6 upper, ZS56 lower
- Seatpost diameter: Ø30.9mm
- Seatpost clam: Ø34.9mm
- Front/rear hub standard: 100x12mm thru axle / 142x12mm thru axle
- Front/rear axle: Ø12x125mm front, TP=1.5, TL=15mm / Ø12x180mm rear, TP=1.5, TL=12mm
- Derailleur hanger: Tuning Chip Right Dropout
- Rear brake (rotor): Flat mount (160mm)
- Front brake (rotor): Flat mount (160mm)
- Fork axle-to-crown: 420mm
- Fork offset: 47mm
- Bare frame weight (M): 1024g
- Fork weight (Lithic Hiili 420): 490g
- Tire clearance (frame): Clearance for tires up to 53 mm wide in 650b or 29" (most 2.1" tires) at 430/440mm chainstay position
- Tire clearance (fork): Max Clearance 29x2.1" (54-622)
- Frame Bag Dimensions: Small Medium Large X-Large
- Seatpost Insertion Depth: Small 250mm; Medium 290mm;
- Large 320mm: X-Large 310mm
- Max weight (rider + gear): 275 lbs
- Max spacer stack under stem: 40mm
- Max spacer stack above stem: 10mm
- Max stem bolt torque: 6 Nm
